Metabolic Measurement System, Vista TurboTrainer - Portable VO2 System (#17600)
Metabolic Measurement System, Vista TurboTrainer - Portable VO2 System (#17600) - Image 2

Metabolic Measurement System, Vista TurboTrainer – Portable VO2 System (#17600)

Vista TurboTrainer – Portable VO2 System (#17600)

*VO2 and VCO2 accuracy better than 4%!

A “wearable” system that stores data for PC download or live display on PC via Blu-tooth that includes:

  • Accurate Lactate/Anaerobic Threshold Determination
  • Accurate VO2max determination
  • Nutritional assessment: Lipids vs. CarbsTotal energy expenditure
  • Single or Dual gas calibration. (May be used in non-ambient FiO2 environments)
  • Five-year O2 sensor, low cost and field replaceable permanent NDIR CO2 sensor
  • Wi-Fi and long distance Bluetooth
  • Color touch-screen display (3.5 inches)
  • Chest or Back mounting
SKU: 17600 Category:

Description

Vista TurboTrainer – Portable VO2 System (#17600)

*VO2 and VCO2 accuracy better than 4%!

A “wearable” system that stores data for PC download or live display on PC via Blu-tooth

    • Accurate Lactate/Anaerobic Threshold Determination
    • Accurate VO2max determination
    • Nutritional assessment: Lipids vs. Carbs Total energy expenditure
    • Single or Dual gas calibration May be used in non-ambient FiO2 environments
    • Five-year O2 sensor, low cost and field replaceable permanent NDIR CO2 sensor
    • Heart rate interface
    • Battery operated
    • Wi-Fi and long distance Bluetooth
    • Color touch-screen display (3.5 inches)
    • Chest or Back mounting
    • Long-life Li-Ion battery
    • Huge data memory: Save approx. 100,000 tests
  • Optional cart for dual use: In lab or mobile use

TurboTrainer system includes O2 and CO2 gas sensors, heart rate monitor, digital turbine flow sensor, face masks with head gear, “wearing” harness, battery, battery charger and TurboFit software for Windows xp, Win 7 + 10 (32/64-bit).

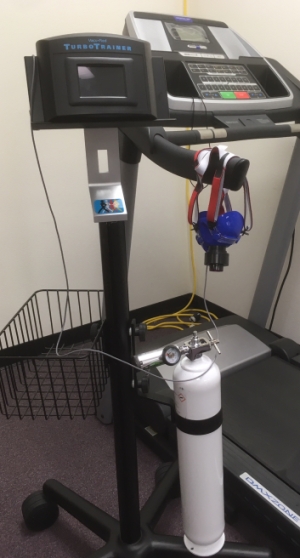

Optional Mobile Cart

Cart allows semi-permanent mounting of TurboTrainer on a mobile cart that includes AC power supply, wire basket and calibration gas tank holder.

Data is downloaded via Wi-Fi or Bluetooth to a PC using our TurboFit software (included)

Click here for “TurboFit” features and specifications. Not all variables are available with Vista TurboTrainer.

The following data is transmitted to our TurboFit software for further processing:

Example: Calorie expenditure with lipid vs. carbs breakdown, lactate (anaerobic) threshold determination, exercise prescription, and more:

a. General file information (Send at start of download only):

  • File name
  • Date and Time of test
  • Inspired O2% and CO2%
  • Patient ID#, Name, Date of Birth, weight in KG, Height in cm, sex
  • Exercise device (If available)
  • Exercise Protocol (If available)

b. Test data every 15 secs

  • Elapsed time in seconds
  • O2% expired and CO2% expired
  • Volume (Total milliliter or number of pulses?)
  • Breathing rate
  • Heart rate
  • Ambient Temperature
  • Barometric pressure
  • Ambient humidity
  • Watts if ergometer
  • Speed and elevation if treadmill
  • Marker time-stamp

c. End of Test signal



*This product is a Fitness Testing Device that is not intended to cure, diagnose, heal or mitigate any illness or condition.
