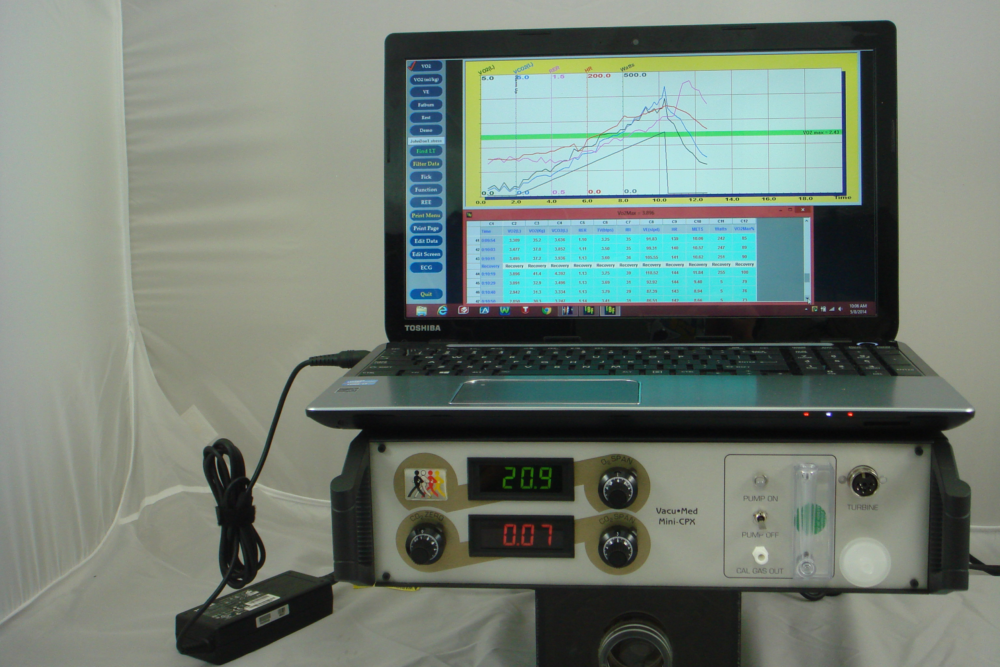

Vista Mini-CPX VO2 Measurement System (#17670)

Vista Mini-CPX is a modular system for Cardio-Pulmonary Exercise Stress (VO2 and VCO2) testing that includes:

  • O2 and CO2 gas analyzers
  • Turbine ventilation meter
  • a USB PC interface with our “TurboFit” software
  • Automatic barometric pressure and temperature sensors
  • Exercise masks (small, medium and large)
SKU: 17670 Categories: ,

Description

The main advantage of the Mini-CPX is proportional sampling: Only a small portion of the breath is sampled at the mouth using a 2.5mm OD tube. This eliminates the breathing valve and large tube to the mixing chamber, thus providing more freedom of movement of a test subject on a treadmill.

We guarantee +/-3% accuracy of the VO2 and VCO2 measurement

Vista Mini-CPX is a modular system for Cardio-Pulmonary Exercise Stress (VO2 and VCO2) testing. It may be used as a portable desktop system with your own computer, or with your choice of integrated mobile carts.

The basic Mini-CPX includes O2 and CO2 gas analyzers, turbine ventilation meter, a USB PC interface with our “TurboFit” software, automatic barometric pressure and temperature sensors, and exercise masks (small, medium and large.

Click here for our “TurboFit” software features and specifications.

Specifications

  • The gas analyzer specifications are identical to our O2 (model 17620) and CO2 (model 17630) gas analyzers.
  • Please note this unit is not intended for clinical use, rather for teaching or laboratory use only
    Type: Cold, Dry Fuel Cell
    Estimated Life: 3 years minimum
    Range: 0 – 100%
    Repeatability: 0.2% O2
    Resolution: 0.1% O2
    Zero Drift 0.3% O2/week (at constant temperature)
    Output: 0 – 5 Volt = 0 to 100% O2
    Meter Display: 4-1/2 digit LED  (0.00 to 100.00)
    Flow Rate (Nominal): 200 ml/minute
    Response Time: Approx. 5 seconds
    Operating Temperature Range: 10o to 40oC
    External Power Supply 100 – 250 VAC, 50/60 Hz (Included), 0.3 Amp at 115VAC
    Warm-up: 30 minutes to 0.1% O2
    Size: 2.75″ (70 mm) Height x 6.3″ (155 mm) Width x 10″ (255 mm) Depth
    Drying Column: Nafion semi-permeable membrane brings sampled gas to ambient humidity.
    No chemical dryer required.
    Gas Sample Inlet: Front Panel
  • Flow Sensor: Bi-directional, micro-computer compensated turbine. Accuracy: +/- 2%.
  • VO2 and VCO2 Accuracy: +/- 3%
  • Digital O2 and CO2 display for use as stand-alone gas analyzer
  • External Inputs: ECG, Heart-rate digital and analog Polar Hear Rate Watch (with our optional interface)RS232 ports for treadmill and/or ergometer control

Options:

  • PC controlled Ergometer
  • Workstation type cart

Computer, ergometer, cart and other options are priced separately. Ask for a sample quotation with all options.
