Gas Analyzer, O2 Precision - Silver Edition (#17620)
Gas Analyzer, O2 Precision - Silver Edition (#17620) - Image 2

Gas Analyzer, O2 Precision – Silver Edition (#17620)

$2,995.00

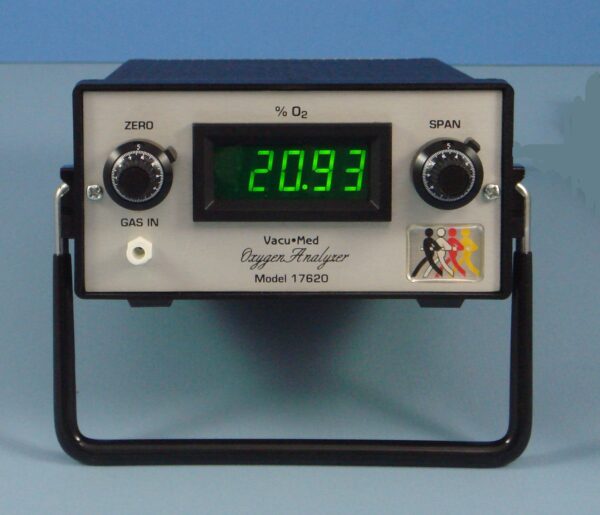

O2 Precision Gas Analyzer – Silver Edition (#17620)

This precision analyzer has a range from 0 to 100%, other ranges are available on request. It is typically used to determine the O2 concentration in respired gases or gas mixtures from collection bags, or other sources.

  • A precision low-cost oxygen analyzer complete with sample pump.
  • Easily replaceable O2 sensor is guaranteed for 3 years
  • Oxygen concentration shows on digital display
  • 1 year warranty
SKU: 17620 Category:

Description

This precision analyzer has a range from 0 to 100%, other ranges are available on request. It is typically used to determine the O2 concentration in respired gases or gas mixtures from collection bags, or other sources.

The oxygen concentration is displayed on a digital meter and a corresponding analog voltage is available on a rear panel BNC connector.A gas pump is built in to draw the gas through the analyzer. Gas flow is internally adjustable. A gas return port may be installed on request.Precision gas mixtures are available for calibrating the analyzer.

O2 sensor is guaranteed for 3 years. Easily replaced by user.



Specifications

Type: Cold, Dry Fuel Cell
Estimated Life: 3 years minimum
Range: 0 – 100%
Repeatability: 0.2% O2
Resolution: 0.1% O2
Zero Drift 0.3% O2/week (at constant temperature)
Output: 0 – 5 Volt = 0 to 100% O2
Meter Display: 4-1/2 digit LED  (0.00 to 100.00)
Flow Rate (Nominal): 200 ml/minute
Response Time: Approx. 5 seconds
Operating Temperature Range: 10o to 40oC
External Power Supply 100 – 250 VAC, 50/60 Hz (Included), 0.3 Amp at 115VAC
Warm-up: 30 minutes to 0.1% O2
Size: 2.75″ (70 mm) Height x 6.3″ (155 mm) Width x 10″ (255 mm) Depth
Drying Column: Nafion semi-permeable membrane brings sampled gas to ambient humidity.

No chemical dryer required.
Gas Sample Inlet: Front Panel

*Not intended for clinical use, for teaching or laboratory use only

1 year warranty, details in FAQ
